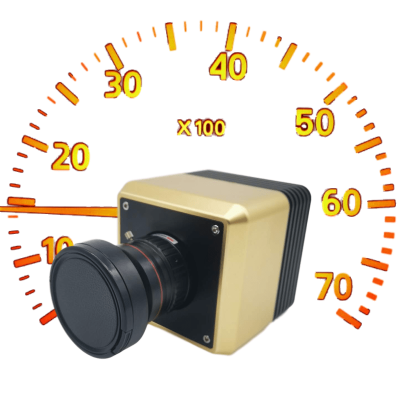

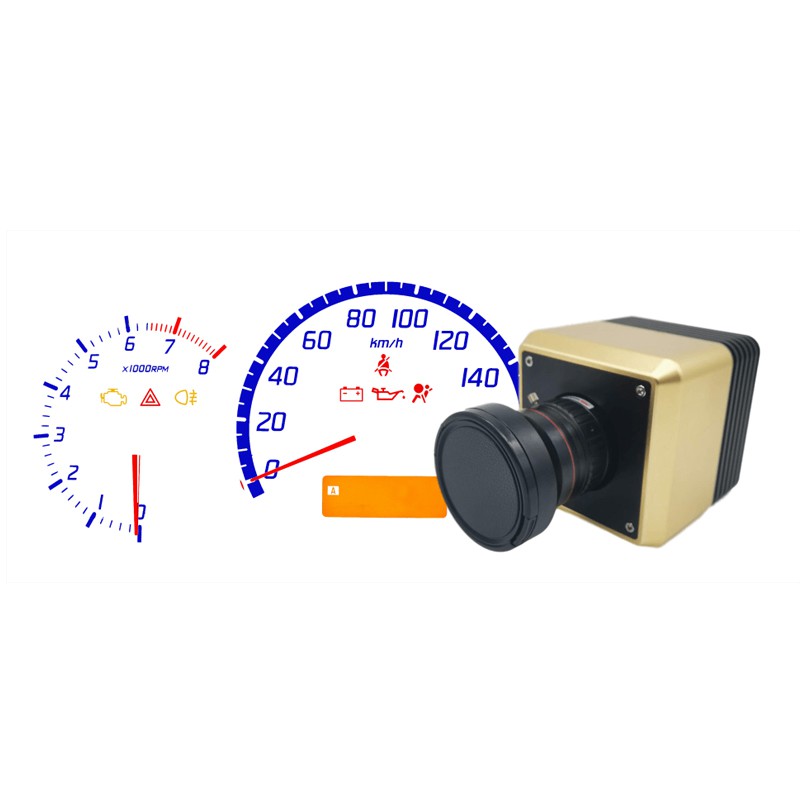

CX-1000 Imaging luminance meter

CX-1000 Imaging Luminance Measurement device, used in Led modules, lamps, luminaires, displays, street luminance and other sources in a broad range of applications.

SYSTEM FEATURES

1. Using a CMOS image sensor and High class V-lambda filter

2. A luminance meter with a matrix of millions of detector points, captures an entire scene, simultaneously measuring luminance of each point

3. Rapidly measures many point in a single operation

4. High resolution and high sensitivity

Meas parameters

●Imaging resolution : 1920x1200 （ FUHD.23MPix ）

●A/D conversion : 12位

●Range : 0.01cd/m2-10000cd/m2

●Resolution : 0.01cd/m2

●Dynamic range : 1:1000000

●Lens focal length : 50mm （Available on request）

●Minimum working area :86mmx55mm （距离440mm ）

● Spectral corresponding uncertainty : A级（F1） < 3%

●Integration time : 50ps~30s

●Type of sensor:corrected CMOS

●Focus distance : 440mm〜8

●Size : 86mm x90mmx 156mm

●Weight : 1200g

●connection : USB 3.0

●Power : USB
