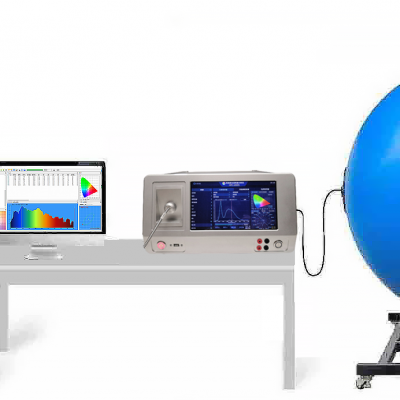

HPCS6500 Spectroradiometer with sphere system
- Product Details
-

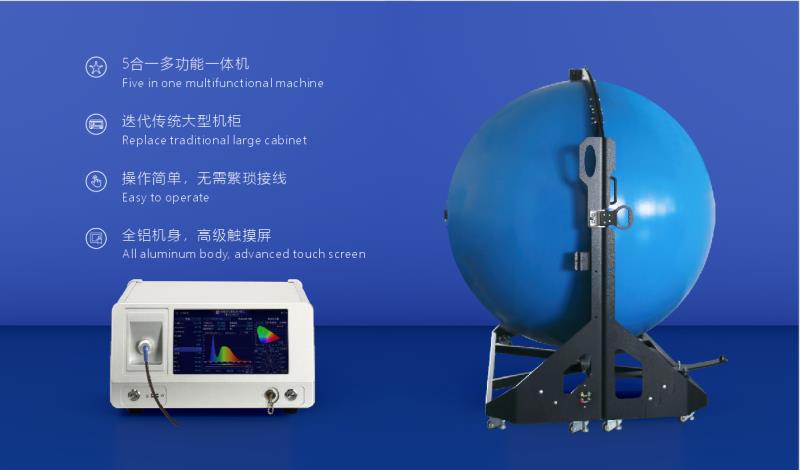

HPCS6500 high-precision photometirc,Colorimetric and Electric Test System, the whole machine adopts aluminum alloy chassis, embedded high-speed processor, 10.1-inch color LCD Touch screen, Use interaction. The system integrating high-precision spectrometer, Flicker and start time tester, DC power supply, AC power supply in one device, use independently also can connect to pc software.
High precision Spectroradiometer
Meas parameters
●Wave range : 380-780 （定制200-1100nm ）● CCT range : 1000-100000K
●FWHM） : 2nm
●Integration time : 10ps-10s
●Chromaticity coordinates Accuracy :±0.001 （标准A光源下Under standard A source ）
High speed photo detector
Meas parameters
●Luminous Flux test: 0.01lm-200z000lm （配不同积分球 With different integrating spheres）
●Rise and start test: 1194/2012. 2009/125、IEC60969
●Flicker Test : Comply with IEEE PAR1789 standard
●Maximum sampling rate :1000kHz
●Maximum sampling points : 15000
●Trigger mode ：Trigger by software, external and measured signal
High precision DC power supply
Meas parameters
● Voltage output range : 0-45.0V
●Current output range : 0-5.0A
●Maximum output power : 225W
●Measurement accuracy : ± （ 0.02%读数+0.01%量程+1 字）
High precision AC power supply
Meas parameters
●Voltage output range : 0V-300V
●Frequency output range : 45Hz~65Hz
●Maximum output power: 1KVA
●Maximum output current: 4.6A
● Harmonic distortion : ＞＝2%阻性负载满载
Digital power meter
Meas parameters
●Voltage measurement accuracy : ±（ 0.4%*读数+ 0.1%*量程+1个字）
●Current measurement accuracy : ± （ 0.4%*读数+ 0.1%*量程+1个字）
●Measurement accuracy of power meter:± （0.4%*读数+ 0.1%*量程+1个字）
●Power factor measurement accuracy : ± （ 0.001/®数 + 0.001*（1 + 0.02f） +1 个字）
